How to Detect Carbon Monoxide From Your HVAC System Early
You cannot see or smell carbon monoxide (CO), so a working CO alarm is the first line of defense. To spot an HVAC-related risk early, watch for yellow or flickering burner flames, soot near the furnace or vents, heavy window condensation, and headaches, dizziness, or nausea that improve after leaving the building. If a CO alarm sounds, leave immediately, call 911 from outside, and do not go back in until responders say it is safe.
CO forms when natural gas, propane, or oil does not burn completely. A blocked flue, poor draft, dirty burner, or cracked heat exchanger can allow combustion gases into the home. Older furnaces, especially those nearing the typical 15- to 20-year heat-exchanger lifespan, deserve close professional attention.
A home CO alarm warns occupants of dangerous exposure. It does not identify the source. A qualified HVAC technician uses calibrated CO meters, combustion analysis, and careful vent and heat-exchanger inspection to find the problem safely. Learning how to detect carbon monoxide HVAC risks begins with alarms and warning signs, then moves to professional testing that confirms where the gas is coming from.
All-Temp Heating & Cooling helps Shenandoah Valley homeowners protect their comfort and safety with professional heating inspections and repairs.
How Detect Carbon Monoxide HVAC Risks in Your Home
Carbon monoxide is often called the silent killer because it is entirely colorless, odorless, and tasteless. When fuel-burning appliances such as gas furnaces, boilers, or water heaters operate without sufficient oxygen, incomplete combustion occurs. This chemical reaction produces carbon monoxide instead of harmless carbon dioxide and water vapor.
Physical symptoms in your household can provide early clues of a low-level leak. Exposure to elevated CO levels can trigger headaches, dizziness, fatigue, nausea, shortness of breath, and confusion. A telltale pattern is when multiple family members or pets experience these symptoms at the same time, then feel better after stepping outside into fresh air.
The condition of your heating equipment can also provide visible warnings. Discoloration around burner assemblies, heavy soot deposits on access panels, or a blocked flue pipe can point to serious venting failures. Excessive condensation on nearby windows can also signal that humid combustion byproducts are spilling back into living spaces instead of exiting through the chimney.
Backdrafting is another major hazard in tightly sealed homes. Exhaust fans in kitchens and bathrooms can create negative air pressure that pulls flue gases back into living areas. Our furnace safety tips explain simple ways to support safe combustion air and draft.
How Detect Carbon Monoxide HVAC Warning Signs Early

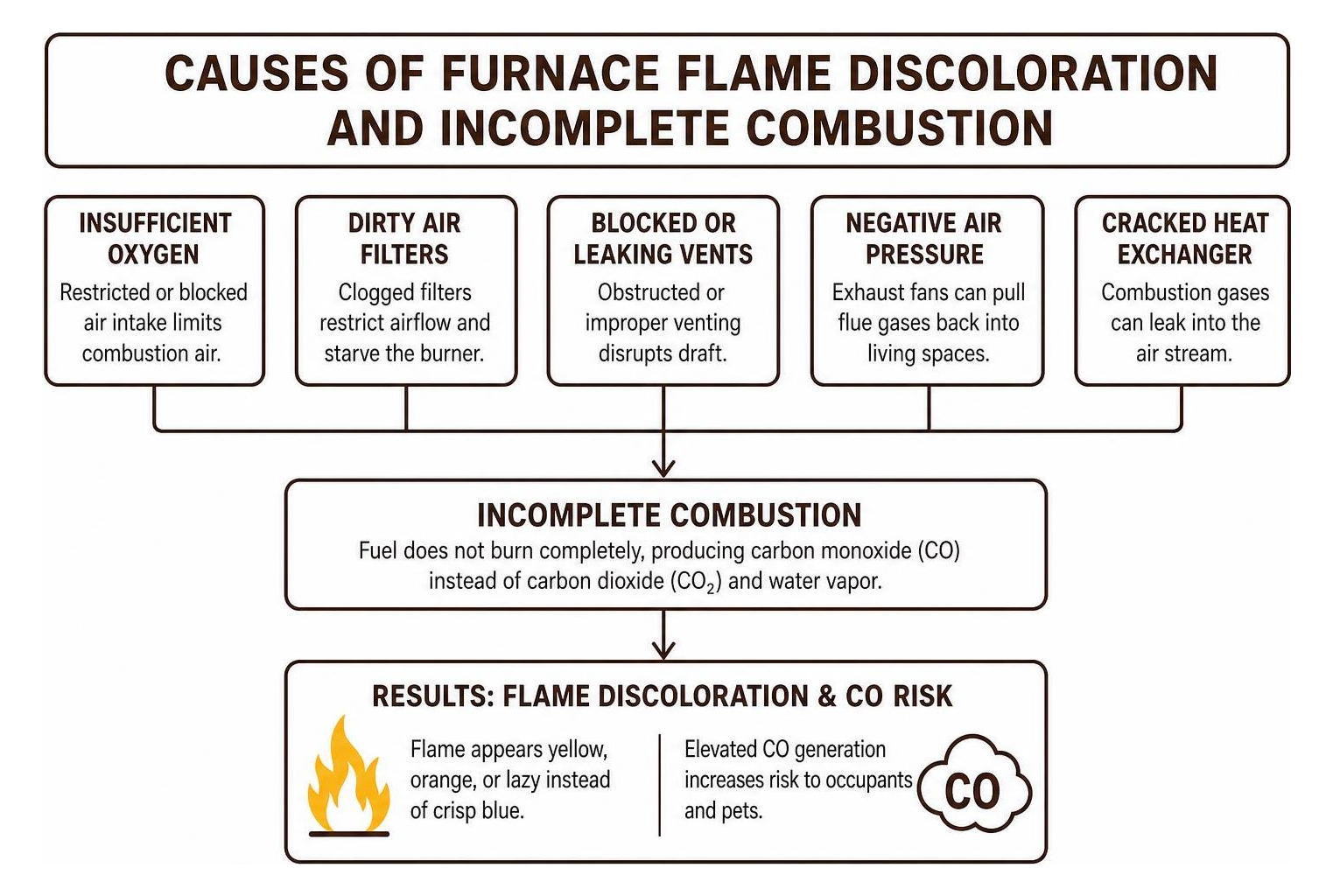

A healthy, properly tuned natural gas burner produces a crisp, steady blue flame. If your burner flame appears lazy, yellow, or orange, the fuel may not be burning completely. This discoloration can signal elevated carbon monoxide production inside the combustion chamber.
Soot around the burner door, draft hood, or exhaust vent can indicate unburned carbon. Restricted airflow from dirty air filters or blocked intake vents can reduce combustion air and increase CO risk.
Carbon monoxide itself has no smell, but incomplete combustion can create odors that resemble burning or overheating metal. If you notice these furnace burning smells when a heating cycle starts, turn off the system and schedule a prompt safety inspection.
Cracked Heat Exchangers and Combustion Gas Intrusion
The heat exchanger serves as a critical barrier in your furnace. It separates flue gases inside the combustion chamber from the air circulated through your ductwork. Over years of operation, metal components expand during heating cycles and contract as they cool.
This repeated expansion and contraction can contribute to metal fatigue, including small cracks around welded seams and curved burner passages. Catching heating problems early can help prevent a small defect from becoming a serious safety concern.
Most residential furnace heat exchangers last about 15 to 20 years. As a system ages, a technician should inspect it for corrosion, damage, and combustion problems. A damaged heat exchanger can allow combustion gases into the air stream when the circulating blower runs.
Diagnostic Procedures: Testing and Locating Heating System Leaks
HVAC professionals use dedicated diagnostic instruments to test heating systems under active load. A technician inspects the draft inducer motor, verifying that it operates at proper speeds (typically 3,000 to 4,000 RPM) to push exhaust gases safely outside.
Static pressure testing across the evaporator coil and heat exchanger confirms balanced airflow through the ductwork. Improper static pressure strains heating components, causing hot spots that accelerate metal fatigue. Maintaining balanced airflow is an essential element of comprehensive indoor air quality management in residential properties.
Technicians also check building ventilation levels against established industry benchmarks. ASHRAE guidelines recommend maintaining outdoor ventilation rates that keep indoor carbon dioxide levels below 1,000 parts per million (ppm), preventing stale air and combustion byproducts from accumulating in living zones.
Tools Technicians Use: How Detect Carbon Monoxide HVAC Leaks Accurately
HVAC technicians do not rely on standard retail alarms to find mechanical leaks. Professional diagnostic kits include advanced electrochemical sensors, high-resolution borescope inspection cameras, and ambient gas sniffers designed to read real-time gas concentrations down to a single part per million.
| Feature / Specification | Residential Dwelling CO Alarms | Professional HVAC CO Meters |
|---|---|---|
| Primary Purpose | Life safety warning and emergency evacuation | Precision diagnostic leak detection and combustion tuning |
| Sensor Type | Biomimetic, metal oxide, or basic electrochemical | Fast-response, calibrated industrial electrochemical sensor |
| Response Threshold | 70 ppm (takes 1–4 hours); 400 ppm (takes 4–15 minutes) | 0 to 2,000 ppm with instantaneous digital readout |
| Display Resolution | Digital screen (often displays 0 below 30 ppm) or no screen | Real-time digital display down to 1 ppm increments |
| Calibration | Factory calibrated; no field adjustment capability | Regular zero-button ambient calibration and span gas testing |
| Lifespan | 5 to 7 years (requires full unit replacement) | Multi-year sensor replacement with routine maintenance |
Borescope cameras allow our technicians to inspect inaccessible interior chambers of the heat exchanger for rust spots, hairline fractures, and soot buildup that cannot be seen from the outside.
Combustion Analysis and Plenum Sampling
A full combustion analysis provides a complete picture of heating efficiency and safety. By inserting a calibrated probe into the exhaust flue, our technicians measure oxygen, carbon monoxide, carbon dioxide, stack temperature, and draft pressure to verify the optimal fuel-to-air ratio.
Plenum sampling is another diagnostic technique used to uncover cracked heat exchangers. The technician places a sensitive sensor inside the warm air supply plenum above the furnace. If a transient spike in CO or combustion gases occurs immediately before or during blower startup, it confirms that flue gases are penetrating the supply air stream.
Residential Detector Placement and Emergency Protocols
Residential carbon monoxide alarms protect your family against dangerous gas buildups while you sleep. Standard retail alarms meeting UL 2034 safety standards are engineered not to sound at low levels below 30 ppm to prevent nuisance alarms, activating when concentrations reach 70 ppm or higher over sustained periods.
Following local community safety recommendations, such as the Augusta County fire rescue guidelines on carbon monoxide detectors, ensures your home remains compliant and well protected throughout the winter heating season.
Standard electrochemical sensors inside residential detectors degrade over time. Regardless of battery condition, replace your home CO alarms every 5 to 7 years to ensure the detection circuitry remains reliable.
Proper Installation and Placement Rules
Proper placement is essential for early warning. Because carbon monoxide has roughly the same density as ambient air, it mixes evenly throughout rooms rather than settling exclusively near the floor or ceiling.
- Install detectors on every level of the home, including finished basements.
- Place an alarm within 10 feet of every bedroom door so sleeping occupants hear the siren.
- Mount units at knee-to-breathing height (around 4 to 5 feet from the floor) for optimal detection and easy display reading.
- Avoid placing units directly next to fuel-burning appliances, inside humid bathrooms, or within 3 feet of supply registers, which can blow fresh air across the sensor and delay an alarm.
- Test all alarms monthly using the integrated test button and change backup batteries every six months.

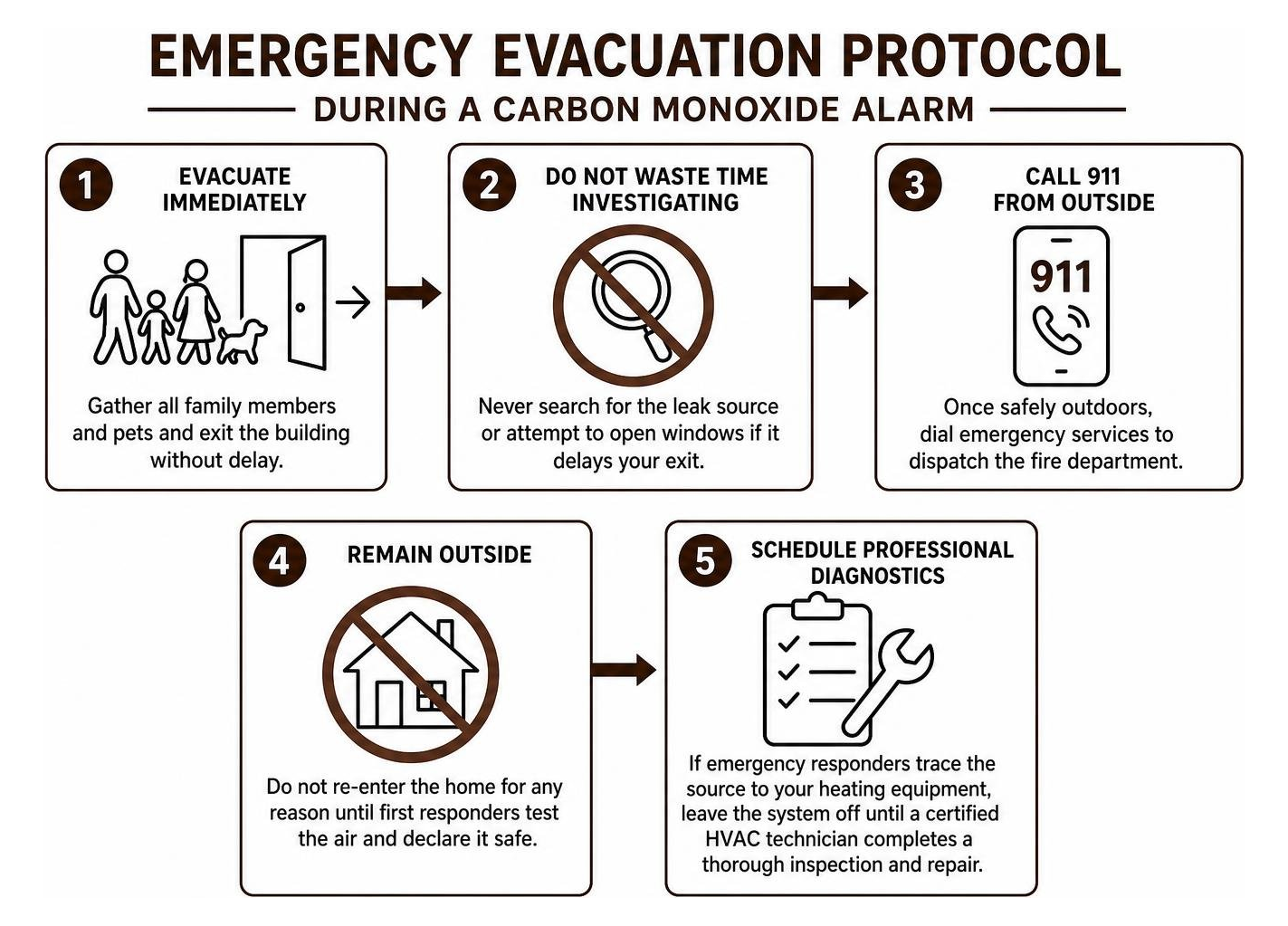

What to Do If Your Alarm Triggers
If your carbon monoxide detector sounds a continuous emergency alarm, treat the situation as an immediate life-safety event:
- Evacuate immediately: Gather all family members and pets and exit the building without delay.
- Do not waste time investigating: Never search for the leak source or attempt to open windows if it delays your exit.
- Call 911 from outside: Once safely outdoors, dial emergency services to dispatch the fire department.
- Remain outside: Do not re-enter the home for any reason until first responders test the air and declare it safe.
- Schedule professional diagnostics: If emergency responders trace the source to your heating equipment, leave the system turned off until our certified HVAC technicians complete a thorough inspection and repair.
Prevention Through Regular Heating Maintenance
Proactive maintenance remains one of the most reliable ways to reduce carbon monoxide risks. Fuel-burning appliances need annual service to keep burners clean, confirm that exhaust piping is clear, and verify safe combustion and draft.
For homes with boilers or other hydronic equipment, boiler maintenance that helps prevent carbon monoxide leaks can help identify combustion and venting concerns before the heating season.
Our year-round HVAC maintenance tips can help homeowners in the Shenandoah Valley plan routine care between professional visits.
Routine heating maintenance helps a technician check combustion, draft, and venting before cold weather arrives.
If an inspection reveals a safety concern, prompt furnace repair can address damaged components or venting problems. Our team uses professional diagnostic tools to identify early warning signs of equipment wear before they become emergencies.
Frequently Asked Questions About HVAC Carbon Monoxide Leaks
Can an HVAC system leak carbon monoxide without setting off a standard detector?
Yes. Residential CO detectors built to UL 2034 standards are designed to sound an alarm only after exposure exceeds 70 ppm for 60 to 240 minutes, and they generally will not trigger at levels below 30 ppm. A furnace with a small hairline fracture may release 10 to 25 ppm into the living space. While this low-level exposure will not set off a retail alarm, it can cause chronic fatigue, headaches, and flu-like symptoms over days or weeks.
How long does a furnace heat exchanger typically last before failing?
Most residential furnace heat exchangers have a service life of 15 to 20 years. Constant thermal stress from thousands of heating cycles causes the metal walls to weaken and thin. If your heating system is over 15 years old, an annual inspection with a borescope camera and flue gas analyzer is critical for catching micro-cracks before they open into major safety hazards.
What diagnostic tests confirm a cracked heat exchanger?
HVAC professionals confirm heat exchanger cracks using four diagnostic steps: visual inspection with high-definition borescope cameras, combustion gas analysis at the flue, draft pressure testing, and supply plenum CO/CO₂ sampling during blower startup. If air pressure from the circulating blower causes burner flame disturbance or creates a spike in plenum combustion gas readings, heat exchanger failure is confirmed.
Keeping Your Home Safe From Carbon Monoxide
Protecting your household from invisible carbon monoxide leaks starts with reliable residential alarms and regular professional heating inspections. Identifying early warning signs, including flame discoloration, burner soot, and unexplained physical symptoms, helps keep your family safe and warm throughout the heating season.
